IDT公司的9ZXL1951D是19路輸出零延遲時鐘驅動器,具有用于PCIe和CPU的第二代增強性能緩沖器,滿足所有發表過的QPI/UPI, DB2000Q和PCIe Gen1–5抖動指標.器件的ZDB模式相位抖動器:

PCIe Gen5 CC < 24fs RMS (低帶寬),QPI/UPI 11.4GB/s < 110fs RMS (低帶寬),IF-UPI附加抖動< 130fs RMS (低帶寬);而Fanout緩沖器模式附加相抖動器: PCIe Gen5 CC < 15fs RMS,DB2000Q 附加抖動 < 25fs RMS,QPI/UPI 11.4GB/s < 40fs RMS,IF-UPI 附加抖動 < 70fs RMS,周期到周期的抖動<50ps,輸出到輸出偏差<50ps. LP-HCSL輸出,

每個輸出對可省略多達4個電阻,9個可選擇SMBus地址.工作溫度-40℃ 到 +85℃ .主要用在服務器,nVME存儲,網絡,加速度計和工業應用.本文介紹了9ZXL1951D主要指標和優勢,框圖, 負載相位抖動測量圖,以及PCIe時鐘發生器評估板EVK9ZXL1951D主要特性和電路圖.

The 9ZXL15x0D/9ZXL19x0D/9ZXL1951D devices comprise a family of 2nd-generation enhanced performance buffers for PCIe and CPU applications. The family meets all published QPI/UPI, DB2000Q and PCIe Gen1–5 jitter specifications. Devices are either 15 or 19 outputs. The devices function as both fanout (FOB) and zero-delay (ZDB) buffers. All devices meet DB2000Q and DB1900Z jitter and skew requirements.

9ZXL1951D主要指標:

? ZDB Mode phase jitter:
? PCIe Gen5 CC < 24fs RMS (Low Bandwidth)
? QPI/UPI 11.4GB/s < 110fs RMS (Low Bandwidth)
? IF-UPI additive jitter < 130fs RMS (Low Bandwidth)
? Fanout Buffer Mode additive phase jitter:
? PCIe Gen5 CC < 15fs RMS
? DB2000Q additive jitter < 25fs RMS
? QPI/UPI 11.4GB/s < 40fs RMS
? IF-UPI additive jitter < 70fs RMS
? Cycle-to-cycle jitter: < 50ps
? Output-to-output skew: < 50ps

9ZXL1951D主要特性:

? LP-HCSL outputs eliminate up to 4 resistors per output pair
? 9 selectable SMBus addresses
? Selectable PLL bandwidths minimizes jitter peaking in cascaded PLL topologies
? Hardware/SMBus control of ZDB and FOB modes allow change without power cycle
? 8 OE# pins support PCIe CLKREQ# functionality (9ZXL1951)
? Spread spectrum compatible
? 100MHz and 133.33MHz ZDB mode (9ZXL15x0, 9ZXL19x0)
? 100MHz ZDB mode (9ZXL1951)
? 1–400MHz FOB mode (all devices)
? -40°C to +85°C operating temperature range
? Package information: see Ordering Information table

輸出:

? 15 or 19 Low-power HCSL (LP-HCSL) output pairs

PCIe時鐘架構:

? Common Clocked (CC)
? Independent Reference (IR) with and without spread spectrum

9ZXL1951D典型應用:

? Servers
? nVME Storage
? Networking
? Accelerators
? Industrial

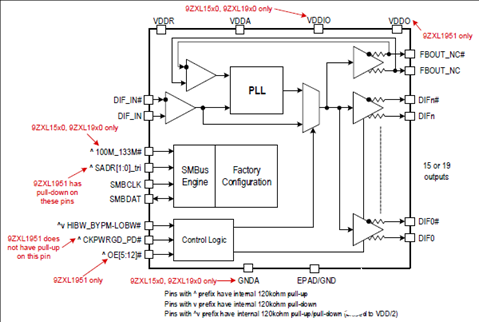

圖1. 9ZXL1951D框圖

圖2. 采用相位噪音分析儀測量負載相位抖動圖

圖3. 采用示波器測量負載相位抖動圖

PCIe時鐘發生器評估板EVK9ZXL1951D

The evaluation board is designed to help the customer evaluate the 9ZXL1951D. The device is programmable through an SMBus interface. This user guide details the board set and connection, as well as the companion GUI installation for communicating to the device. The board has a self-contained USB to SMBus interface.

圖4. 評估板EVK9ZXL1951D外形圖

圖5. 評估板EVK9ZXL1951D電路圖: 9ZXL1951D連接

圖6. 評估板EVK9ZXL1951D電路圖: USB接口和電源
